G20 BMW M340i Wheel Fitment Guide
If you own a G20 M340i, upgrading your wheels is one of the highest-impact changes you can make. The right set doesn’t just change the look, it drops unsprung weight, sharpens steering response, and gives you a fitment that actually suits the platform. This guide covers everything we’ve learned from R&D and real-world test fits: OEM M340i wheel specs, 18″–20″ sizing breakdowns, staggered vs. square setups, offset guidance, and which of our Flow Forged wheels fit the G20 without compromise.
All fitments apply to both RWD and xDrive M340i’s, model years 2018–2026.
OEM G20 BMW M340i Wheel & Tire Specs
Before you start shopping, know your baseline. The G20 runs a 5×112 bolt pattern with a 66.6mm center bore. That’s consistent across the entire M340i lineup: RWD and xDrive, pre-LCI and LCI. OEM fitments run from 17″ to 20″ with a staggered rear on M Sport packages.
| Specification | Wheel Size & Offset (Front) | Wheel Size & Offset (Rear) | Bolt Pattern | Center Bore | Tire Size (Front) | Tire Size (Rear) |
|---|---|---|---|---|---|---|
| Square | 17✕7.5 +30 | 17✕7.5 +30 | 5✕112 | 66.6mm | 225/50R17 | 225/50R17 |
| Square | 18✕7.5 +25 | 18✕7.5 +25 | 5✕112 | 66.6mm | 225/45R18 | 225/45R18 |
| Staggered | 18✕7.5 +25 | 18✕8.5 +40 | 5✕112 | 66.6mm | 225/45R18 | 255/40R18 |
| Staggered | 19✕8 +27 | 19✕8.5 +40 | 5✕112 | 66.6mm | 225/40R19 | 255/35R19 |
| Staggered | 20✕8 +27 | 20✕8.5 +40 | 5✕112 | 66.6mm | 225/35R20 | 255/30R20 |
Available G20 BMW M340i Wheels
M340i Wheel Fitment by Size
Choosing the right diameter comes down to how you use the car. Here’s the honest breakdown.
18" Fitments
18″ wheels give you the most sidewall, which means better ride compliance and, depending on your setup, a slight edge in ride quality on imperfect roads. If you’re running coilovers or plan to track the car occasionally, 18s are the practical choice. The extra tire volume absorbs what the suspension can’t.
Staggered
| Wheel | Suggested Size (Front) | Suggested Size (Rear) | Suggested Tire (Front) | Suggested Tire (Rear) |
|---|---|---|---|---|
| CFF70 ⚠️ | 18✕9.5 +30 | 18✕10.5 +20 | 255/45R18 | 275/40R18 |
| ⚠️ Super aggressive fitment. May require fender rolling/pulling or spacers depending on suspension setup. | ||||
19" Fitments
19″ is the sweet spot for the M340i. BMW ships a lot of M340i’s on 19s from the factory for a reason; the balance between visual proportion and everyday driveability is right. You get enough contact patch for spirited driving without the harshness that comes with a 20″ on stock or near-stock suspension.
Square
Staggered
| Wheel | Suggested Size (Front) | Suggested Size (Rear) | Suggested Tire (Front) | Suggested Tire (Rear) |
|---|---|---|---|---|
| CFF46 | 19✕9 +28 | 19✕10 +38 | 255/35R19 | 285/30R19 |
| CFF70 | 19✕9 +28 | 19✕10 +35 | 255/35R19 | 285/30R19 |
| CFF70 | 19✕9 +25 | 19✕10 +35 | 255/35R19 | 285/30R19 |
| CFF72 | 19✕9 +28 | 19✕10 +38 | 255/35R19 | 285/30R19 |
| CFF72 | 19✕9 +28 | 19✕10 +35 | 255/35R19 | 285/30R19 |
| CFF72 | 19✕9 +25 | 19✕10 +38 | 255/35R19 | 285/30R19 |
| CFF72 | 19✕9 +25 | 19✕10 +35 | 255/35R19 | 285/30R19 |
| CFF75 | 19✕9 +28 | 19✕10 +35 | 255/35R19 | 285/30R19 |
| CFF75 | 19✕9 +25 | 19✕10 +35 | 255/35R19 | 285/30R19 |
| CFF300 | 19✕9 +28 | 19✕10 +38 | 255/35R19 | 285/30R19 |
| CFF300 | 19✕9 +25 | 19✕10 +35 | 255/35R19 | 285/30R19 |
20" Fitments
20″ wheels are for drivers prioritizing aesthetics. They fill the fender gap cleanly and look aggressive on the G20’s proportions. Trade-off: less sidewall means you’ll feel road imperfections more. If form matters more than function and you’re not tracking the car, this size delivers the stance you’re after with zero modification required.
Square
| Wheel | Suggested Size (Front) | Suggested Size (Rear) | Suggested Tire (Front) | Suggested Tire (Rear) |
|---|---|---|---|---|
| CFF300 | 20✕9 +25 | 20✕9 +25 | 245/35 or 255/30R20 | 245/35 or 255/30R20 |

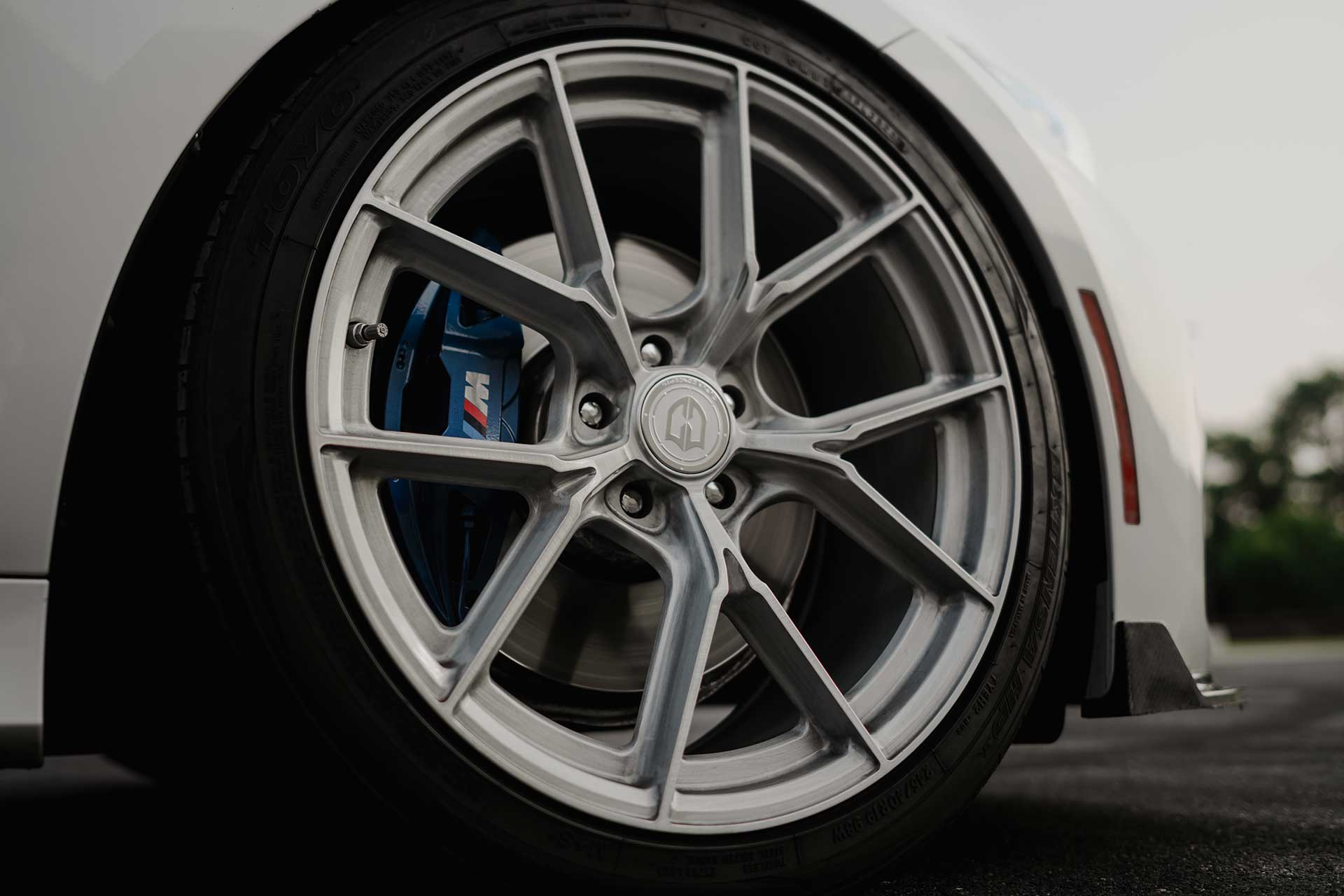

G20 BMW M340i Fitment Gallery
swipe to scroll
Staggered vs. Square: Which Setup Is Right for You?
Neither setup is universally “better.” They serve different purposes, and the right answer depends on how you drive.
Square Setup
Running the same width front and rear keeps rolling circumference identical and preserves your ability to rotate tires. It’s the practical choice for daily drivers and anyone logging real miles. Handling stays balanced and predictable.
Staggered Setup
A staggered setup (wider in the rear) gives you more rear contact patch, which adds traction and lets the car rotate more naturally in corners. It also produces a more aggressive stance. If you’re building the M340i primarily as a driver’s car and you’re not planning to rotate tires, staggered is the better visual and performance option.
Running Staggered on xDrive
Yes, staggered is fine on the xDrive M340i. The important factor isn’t wheel width alone; it’s rolling circumference. Keep the variance between front and rear tire rolling circumference within 1–2% and the AWD system operates normally. Go beyond that range and you risk unnecessary drivetrain wear. Our fitment team can confirm a compatible staggered tire pairing for any wheel combination. Learn more about square and staggered fitments.
Flow Forged Wheels for the G20 M340i
All of our Flow Forged fitments are engineered for the G20 platform. Flow Forged construction compresses the barrel under high pressure during production, resulting in a wheel that’s significantly lighter and stronger than a standard cast wheel without the cost of a full forged piece.
Every wheel in the lineup clears OEM brakes and fits the factory 5×112 hub without modification. Designed and engineered in Los Angeles.
Additional Fitment Considerations
When shopping for the best BMW performance wheels for your M340i, there’s several crucial factors that need to be considered beyond basic fitment and aesthetics to ensure optimal performance, safety, and longevity.
Brake Clearance
All Curva Concepts wheels are engineered to clear OEM M340i brakes. If you’ve upgraded to a big brake kit, reach out before ordering. BBKs vary significantly in caliper height and we’ll confirm clearance before anything ships.
Suspension Clearance
If you’re running coilovers or height-adjustable springs, clearance changes. Aggressive drops can bring fenders closer to the tire sidewall, particularly in the rear on staggered setups. We’ve tested these fitments across a range of ride heights. Share your setup and we’ll dial it in.
Quality & Certification
All wheels carry JWL and VIA certification. That’s not a marketing line, it’s independent structural testing under load conditions that exceed standard road use. Backed by our warranty and accidental damage replacement policy.
Warranty and Support
We stand behind the quality of our products with comprehensive warranty options and an accidental damage replacement policy. Our dedicated customer support team is always ready to assist you with any questions or concerns regarding your wheel purchase. For detailed information on our warranty and support services, please visit our warranty page.
Which M340i Fitment Is Right for You?
Tell us the size you’re considering and your preferred style. A fitment specialist will reach out to confirm specs, tire sizing, and availability. No pressure, just answers.
"*" indicates required fields
Frequently Asked Questions
What wheel sizes fit the BMW M340i?
The G20 M340i accommodates 18", 19", and 20" aftermarket wheels. OEM fitments start at 17" on base configurations and go up to 20" on M Sport trims. Our Flow Forged fitments are available in 18"–20" with multiple width options for both square and staggered setups.
What is the BMW M340i bolt pattern?
The G20 M340i uses a 5x112 bolt pattern with a 66.6mm center bore. This applies to all variants — RWD, xDrive, pre-LCI, and LCI.
Can I run staggered wheels on an xDrive M340i?
Yes. The xDrive system handles staggered fitments without issue as long as the front and rear tire rolling circumference stays within a 1–2% variance. It's not about matching widths exactly — it's about keeping rolling diameter consistent enough that the AWD system isn't compensating for a perceived speed difference between axles.
What's the difference between square and staggered setups?
A square setup runs the same width wheel front and rear, which allows tire rotation and keeps handling neutral. A staggered setup runs a wider wheel in the rear, adding rear grip and a more aggressive stance. For daily drivers who rotate tires regularly, square makes practical sense. For driver-focused builds where rear traction and aesthetics are priorities, staggered is the better fit.
Do Curva Concepts wheels clear OEM M340i brakes?
Yes — every fitment in our lineup is engineered and tested to clear the factory brake package on the M340i. If you're running an aftermarket BBK, contact us directly to confirm clearance before ordering.
Will these wheels fit both pre-LCI and LCI M340i models?
Yes. The chassis dimensions and hub specs are identical across the G20 generation (2018–2026), so our fitment data applies to both pre-LCI and post-LCI M340i's.
